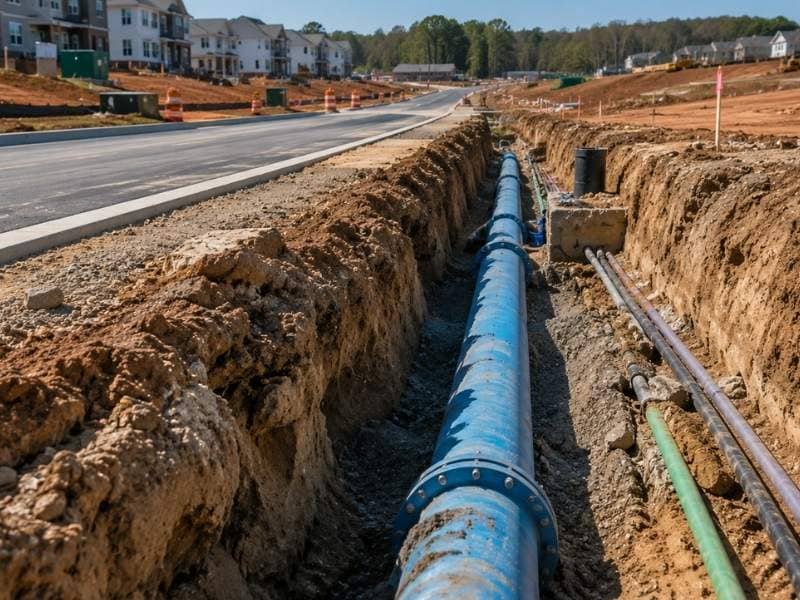

In Raleigh, North Carolina, a lot of land sits close to city water lines but not close enough. A builder buys a parcel, checks the tax map, and sees a water line a few hundred feet away. That gap is often the reason a project needs a water main extension instead of a simple tap into an existing line.
This happens more than people expect. Raleigh has grown fast, and many parcels near the edge of town, or tucked behind older development, were never built with public water in mind. When the closest main can’t reach the site, or can’t carry the flow a new building or fire hydrant needs, utility design has to bridge that gap.
Confirming Whether the Existing Main Can Serve the Proposed Development
Before anyone draws a pipe route, an engineer has to answer one question: can the nearby main handle this project at all?
That means pulling city GIS records to find the closest public water line, checking its size, and looking at pressure and flow data for the area. A six-inch line built for a few houses in the 1970s may not carry enough water for a new apartment building or a commercial site with fire sprinklers.
The review also looks at:
- How far the site sits from the nearest main
- Whether the main has room left in its capacity
- What the development actually needs, based on unit count, building size, and fire flow requirements
- Whether a simple service line will work, or if the project needs its own extension
If the existing main falls short in size, location, or capacity, an extension becomes part of the design instead of an option.
Selecting an Extension Route That Works Beyond the Project Boundary
Once an extension is needed, the next question is where it should go. This part rarely stays inside the property line.
A main might need to run along the site’s road frontage, cross through an easement on a neighboring parcel, or continue past the project to a point where the city wants future service extended. Raleigh Public Utilities often asks developers to build a line sized and routed for growth beyond just their own lot, not only what the current project needs.
Picking a route means working through several things at once:
- Legal access, including any easements that must be recorded on other properties
- Other buried lines already in the ground, like sewer, gas, and communication conduit
- Road crossings, which usually mean bore work instead of open trenching
- How the line will be reached for repairs or shutoffs once it’s buried
A route that looks simple on a site plan can turn into a real problem once these factors are checked. Good utility design catches that early, before construction bids go out.
Matching Pipe Layout to the Site’s Actual Service Needs
Getting water to the edge of a property is only part of the job. The layout inside the site has to match how the property will actually be used.
This means figuring out where each building, hydrant, or irrigation meter will connect, and how those connections tie back to the main. A single-family subdivision needs a different layout than a shopping center or a mid-rise apartment building. Pipe size, valve placement, and hydrant spacing all depend on the type of development and the fire code that applies to it.
A few things shape this layout:
- Where buildings and fire connections sit on the final site plan
- Minimum hydrant spacing and coverage rules
- Valve placement, so sections of the line can be shut off without cutting water to the whole site
- Looped versus dead-end configurations, since looped systems usually give better pressure and flow
This step is where utility design turns from a route on a map into a system that actually works for daily use, not just for the day it gets inspected.
Coordinating the Water Main With Other Underground Infrastructure
Underground space is tight. Water lines share that space with sanitary sewer, storm drainage, electric duct banks, gas lines, and communication conduit. All of that has to fit without one utility blocking another.
Coordination usually happens through overlay drawings, where every utility’s proposed location gets checked against the others. This catches conflicts, like a water line crossing too close to a sewer main, or a hydrant lead running into a planned electric vault, while there’s still time to shift a line a few feet instead of redesigning it mid-construction.
Common conflict points include:
- Vertical clearance where a water line crosses sewer or storm pipe
- Horizontal separation rules between water and sewer lines, which North Carolina regulates closely
- Utility crossings at road cuts, where several lines often stack in the same trench
- Coordination with the electric and gas providers on separate schedules
Catching these conflicts on paper costs a redline. Catching them in the field costs time and money.
Preparing Utility Design Documents for Review and Construction
Once the route, layout, and coordination are settled, the plan set gets built for two audiences: the reviewing agency and the crew that will build it.
Raleigh Public Utilities has its own standards for pipe material, bedding, valve spacing, and connection details, and those requirements can shift depending on the specific main size and location. The plans need to reflect the standards that apply to that project, not a generic set of details copied from another job.
A complete plan set typically shows:
- Plan and profile views of the proposed main
- Connection details at the point of tie-in to the existing system
- Fire hydrant and valve locations with spacing called out
- Specifications for pipe material, thrust blocking, and testing requirements
Getting these details right the first time keeps the review process moving and gives the construction crew a plan they can build from without guessing.
A water main extension adds a step most developers don’t plan for at the start. But with the right utility design, it’s a step that can be worked into the schedule instead of one that stalls the whole project.
