Every building in Raleigh sits on soil the design team never sees before ground gets broken. That’s what a geotechnical engineering report is for. It tells you what’s under the site, and it shapes almost every structural decision that comes after it. Skip it, or rush it, and you risk a foundation that cracks, settles unevenly, or costs far more to build than planned.
What Information Does a Geotechnical Report Provide
A geotechnical report is a written record of what’s below the ground surface, along with engineering advice on how to build safely on top of it.
At a minimum, it covers:
- Soil types and layers found at the site, from topsoil down to bedrock
- Groundwater depth at the time of testing
- Recommended foundation type, such as spread footings, mat foundations, or drilled shafts
- Bearing capacity values for the soil or rock
- Site prep steps, including grading, fill compaction, and any unsuitable material that needs removal
In Raleigh, the report also has to account for something the region is known for among engineers: deep, variable residual soil. Raleigh sits within a belt of metamorphic rock, mostly gneiss and schist, that has weathered over millions of years into layers of clay, silt, and sandy soil before you hit solid rock. That transition zone, called saprolite, can behave very differently from one side of a lot to the other. A report written for a site in Cary won’t tell you what’s happening under a lot in North Raleigh. Each site needs its own investigation.
How Do Soil and Groundwater Conditions Affect Design
Soil type drives foundation choice. Clay-rich soils near the surface can shrink and swell with moisture, which puts stress on shallow footings. Sandier layers drain better but may compact unevenly under heavy loads. Engineers test for both, then match the foundation design to what they find.
Groundwater matters just as much, and it gets less attention than it should. A high water table can:
- Reduce the bearing capacity of soil beneath a footing
- Cause excavation problems during construction, especially in basements or parking decks below grade
- Increase the risk of soil erosion around foundations and utility trenches
Groundwater levels in the Piedmont region shift with the season. A boring done in a dry October can miss a water table that rises several feet by March. That’s one reason experienced engineers note not just where they found water, but when they tested, and whether conditions looked seasonal or unusual.
What Do Boring Logs Reveal About the Site

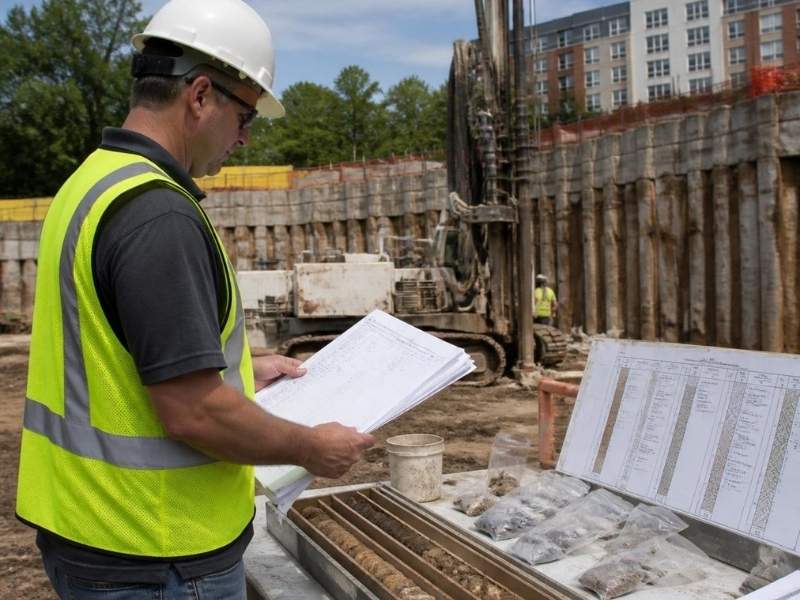

A boring log is the raw record from a single test hole. It’s not the final report, but it’s the evidence behind every recommendation the report makes.
Each log typically shows:
- Depth of each soil or rock layer, in feet
- Soil classification, using a system like the Unified Soil Classification System
- Blow counts from standard penetration testing, which estimate soil density and strength
- Depth where groundwater was found, if any
- Depth where the boring hit refusal, meaning the drill couldn’t go further, usually a sign of hard rock

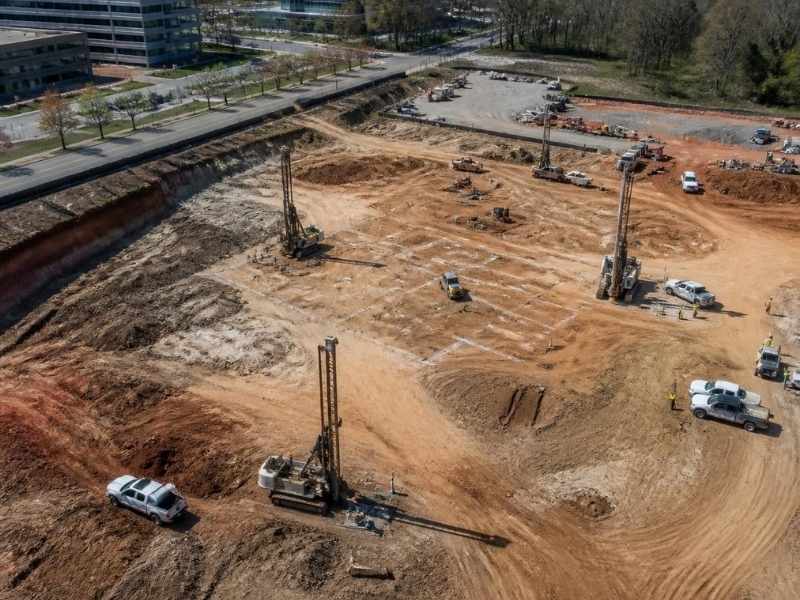

Reading one log tells you about one point on the site. Reading several together tells you how the ground changes across the lot. In Raleigh’s Piedmont soils, bedrock depth can swing by ten feet or more within a few hundred feet of lateral distance. That’s why engineers space borings across a site rather than drilling just one hole in the middle and calling it done.
Why Boring Spacing Matters
A single boring might miss a rock outcrop, a soft pocket, or an old fill area entirely. More borings cost more money upfront, but they cut the odds of a costly surprise once excavation starts.
How Do Engineers Use Bearing and Settlement Data
Bearing capacity tells you how much load a square foot of soil can hold without failing. Settlement data tells you how much the ground is likely to compress once that load sits on it for years.
Both numbers feed directly into foundation sizing. A footing designed for soil with low bearing capacity needs to be wider, to spread the load over more area. Soil expected to settle unevenly might call for a different foundation type altogether, such as deep foundations that bypass weak upper soil and rest on stronger material below.
Uneven settlement, where one part of a building sinks faster than another, causes the visible damage owners dread most: cracked slabs, doors that stick, walls that separate at the corners. Getting the bearing and settlement numbers right at the design stage is far cheaper than fixing a foundation after the fact.
When Should the Report Be Updated During the Project
A geotechnical report isn’t a one-time document. Conditions change, and so do plans.
Update or revisit the report when:
- Final grading or structural plans differ from what the original investigation assumed
- Construction reveals soil conditions that don’t match the report, such as unexpected fill, soft spots, or rock at a different depth than logged
- There’s a significant gap in time between the original testing and construction start, especially if the site sat exposed to weather during that period
- The project scope changes, such as adding a level to a building or shifting a footprint into an untested part of the lot
Most reputable geotechnical firms ask to review final plans before construction begins, specifically to confirm their original recommendations still apply. That step gets skipped more often than it should, usually under schedule pressure, and it’s one of the more common reasons for change orders once crews are already on site.
Frequently Asked Questions
How long does a geotechnical investigation take?
Field work often takes a few days to one week. The schedule depends on the site size, access and number of borings needed. The written report may take another two to three weeks after field work ends.
Do small residential projects need a geotechnical report?
Not every small residential project needs a full report. Larger developments, steep lots and sites with known soil issues are more likely to need one. Local building rules and project risk also affect the decision.
What’s the difference between a boring log and a geotechnical report?
A boring log records the soil, rock and groundwater found in one test hole. A geotechnical report reviews all boring logs and explains what they mean for design. It also gives recommendations for foundations, grading and site work.
Can an old geotechnical report be reused?
Sometimes. The report must still match the current project and site conditions. New testing may be needed if years have passed, grading has changed the site or the new building differs from the old plan.
What happens when crews find different soil during construction?
Work may pause in the affected area while the geotechnical engineer reviews the new condition. The engineer may order more testing or update the design advice. This check can prevent larger foundation or settlement problems later.
