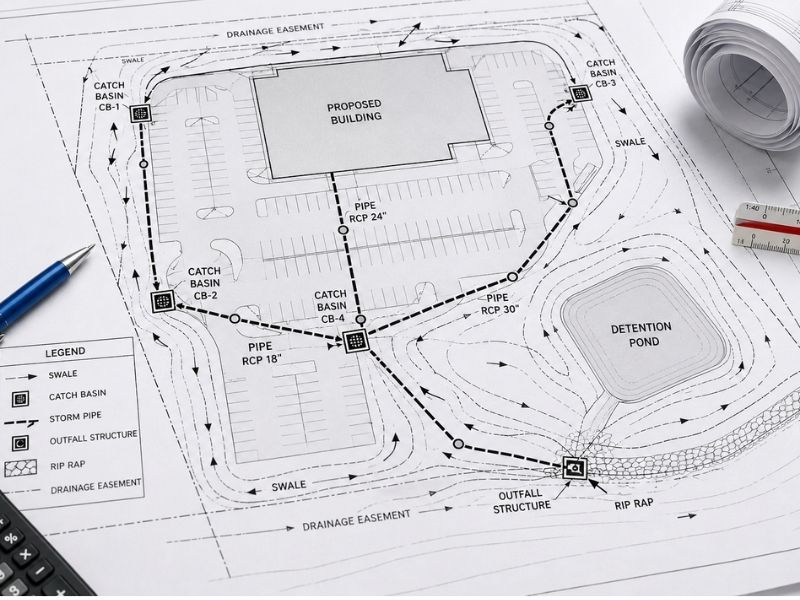

Drainage design shows up as a maze of small symbols on a site plan. Arrows. Circles. Dashed lines. Most developers skip past these details and jump straight to the building footprint. That’s a mistake, since these symbols show exactly how water moves across your site during a storm. Raleigh’s mix of clay soil and heavy summer rain makes these details matter even more than they do in drier markets.
Here’s what those symbols actually mean, and why each one matters to your project.
Swales Move Water Without a Single Pipe
A swale is a shallow, graded channel. It moves water across the surface instead of underground. You’ll see these along property lines, behind buildings, or next to parking lots.
Swales cost less than pipe. They’re easier to maintain too. But they need enough slope to actually work. A swale that’s too flat holds water instead of moving it. That standing water can turn into a mosquito problem fast, especially in a warm, humid climate like Raleigh sees most of the year.
Catch Basins Are the Doorways Into Your Pipe Network
A catch basin is a box set into the ground with a grate on top. Water collects on the surface and drops through that grate into the pipe system below. You’ll see these in parking lots, low points in a site, and along curb lines.
Catch basin spacing matters more than people think. Too few basins, and water pools in low spots before it reaches one. Too many, and you’re paying for pipe and structures you didn’t need. A civil engineer sizes and spaces these based on how much water each one needs to handle during a design storm.
Pipe Networks Carry Water Where Gravity Says It Should Go
Once water drops into a catch basin, it travels through underground pipe to its final outlet. This pipe network gets sized based on how much water it needs to carry and how much slope is available to move that water along.
Pipe size on a site plan isn’t arbitrary. A pipe that looks small compared to others nearby is probably carrying less water, maybe from a smaller drainage area. A pipe that jumps in size partway through the run usually means another catch basin fed into it upstream.
Outfall Structures Control Where Water Leaves Your Site
An outfall is the point where your site’s stormwater system releases water, either into a pond, a stream, or a public drainage system. This point matters a lot, since it’s often the most regulated piece of the entire drainage design.
Outfall structures sometimes include a flared end section, rip rap, or an energy dissipator, all designed to slow water down before it hits natural ground or a waterway. Skipping this detail can cause erosion right at the point where your site’s water meets the outside world, which is exactly the kind of problem a regulator will flag during inspection.
Rip Rap Isn’t Just Loose Rock, It’s a Calculated Design Element
Rip rap is the loose stone you see at pipe outlets or along channel banks. It looks simple, but the size and depth of that rock gets calculated based on expected water velocity at that exact point.
Undersized rip rap washes away during a real storm, exposing soil underneath to erosion. Oversized rip rap costs more than necessary and can actually slow maintenance access. Getting this size right is a small detail with a real cost and performance impact.
Drainage Easements Set Boundaries You Can’t Build Around
A drainage easement is a legal area on a site plan where a property owner can’t build, fence, or obstruct water flow, even though they technically own that land. These often run along the rear of lots or through the middle of a site, following an existing or planned drainage path.
Developers sometimes miss these easements during early concept design, only to find out later that a planned building footprint overlaps one. Checking recorded easements against your site plan early avoids a redesign after the layout already feels finalized.
What Developers Should Confirm Before Approving a Drainage Layout
Before signing off on a drainage design, confirm these details with your civil engineer.
- Swale slopes are steep enough to move water without creating standing pools
- Catch basin spacing matches the drainage area each structure is expected to handle
- Outfall structures include erosion protection appropriate for expected water velocity
- No building footprint or planned structure overlaps a recorded drainage easement
Answering these before final design keeps your site plan realistic instead of built around assumptions that get corrected later.
Small Symbols, Real Consequences
Every symbol on a drainage plan represents a real decision about where water goes during a storm. Swales, catch basins, pipe, outfalls, rip rap, and easements all work together as one system. Understanding what each piece does, even at a basic level, helps you catch problems on paper instead of finding them after a storm hits your finished site.
